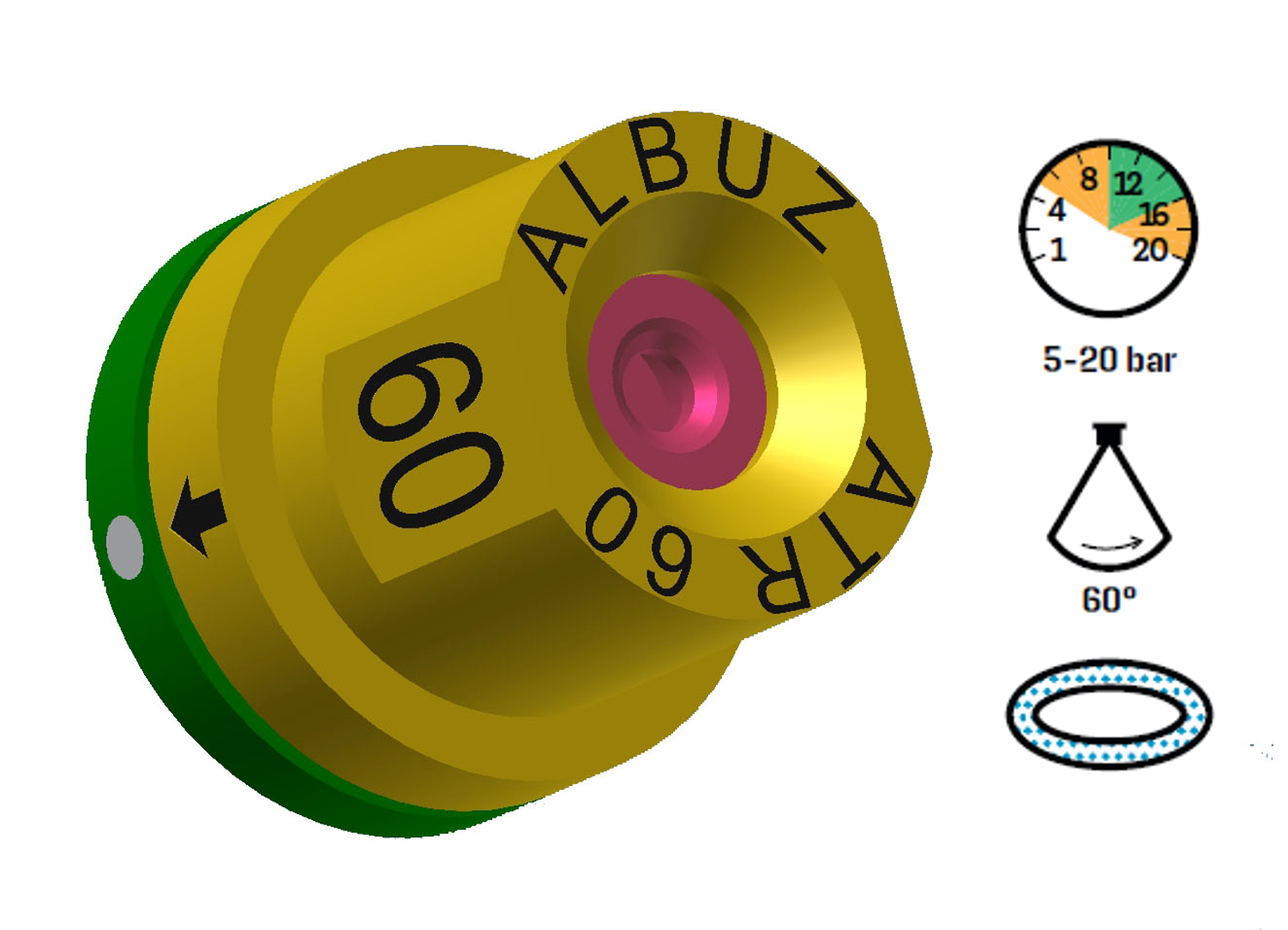

The Albuz ATR 60 is used in orchard sprayers and boom sprayers were overlapping with 80 degree nozzles are excessive. These nozzles have a narrower spray angle than the popular ATR 80-degree range which can improve horisontal projection in situations where the air assistance of a spray applicator is insufficient. This nozzle is produced with precision by Albuz based in France and boasts a ceramic nozzle orifice with impressive wear resistance.
These nozzles are mainly used for fungicide and insecticide applications on air assisted orchard sprayers. However, they can also be used on air assisted boom sprayers or knapsack sprayers.

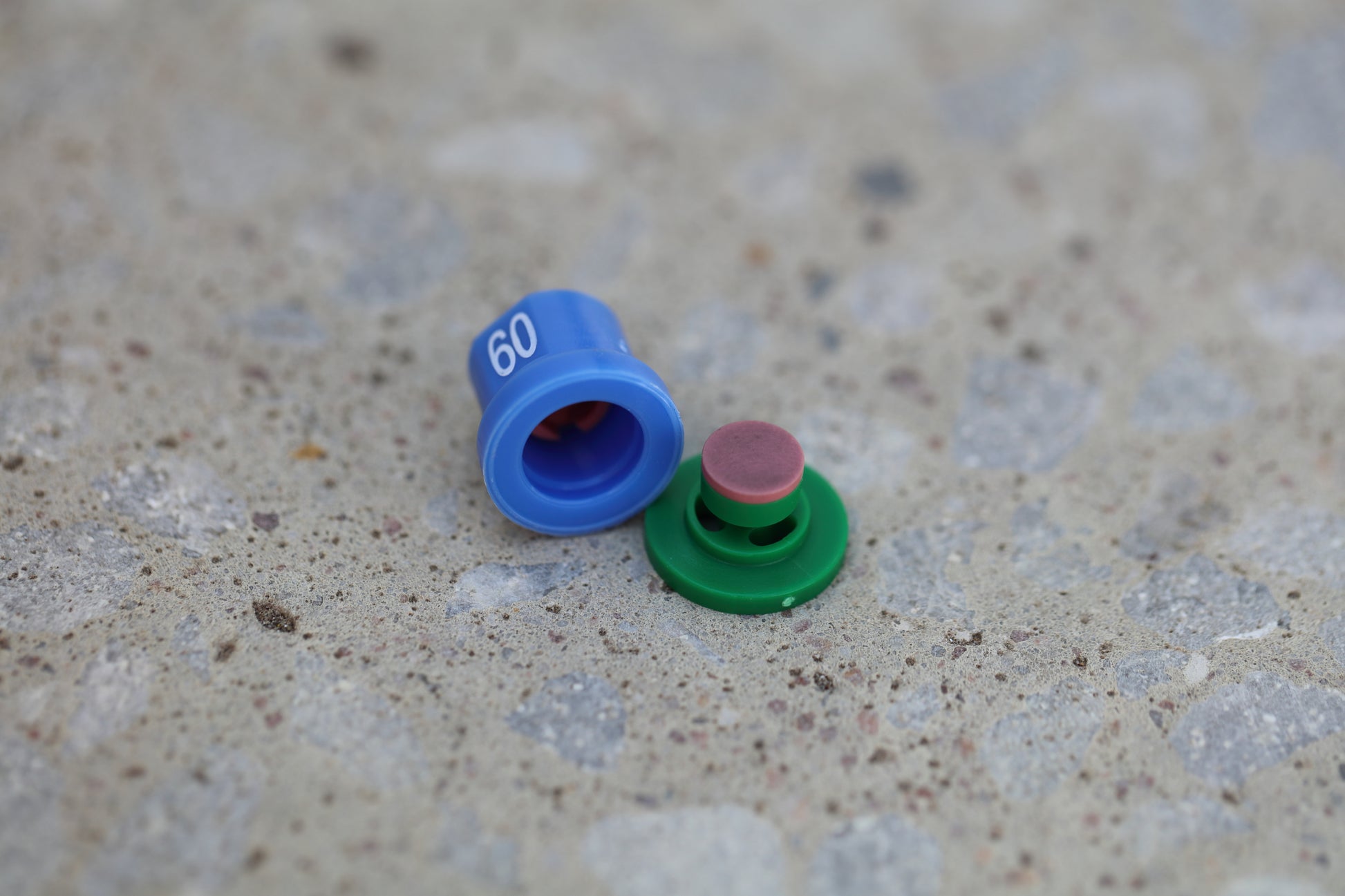

MAIN CHARACTERISTICS > Easy dismantling for cleaning.
> Spray angle 60-degrees.
> Can be used on a sprayer boom from 3 bar pressure.
> Precision polished ceramic surfaces of internal components ensure perfect sealing of the swirl chamber to give precise flowrate.
SPECIFIC CHARACTERISTICS > Angle of 60° at 5 bar.

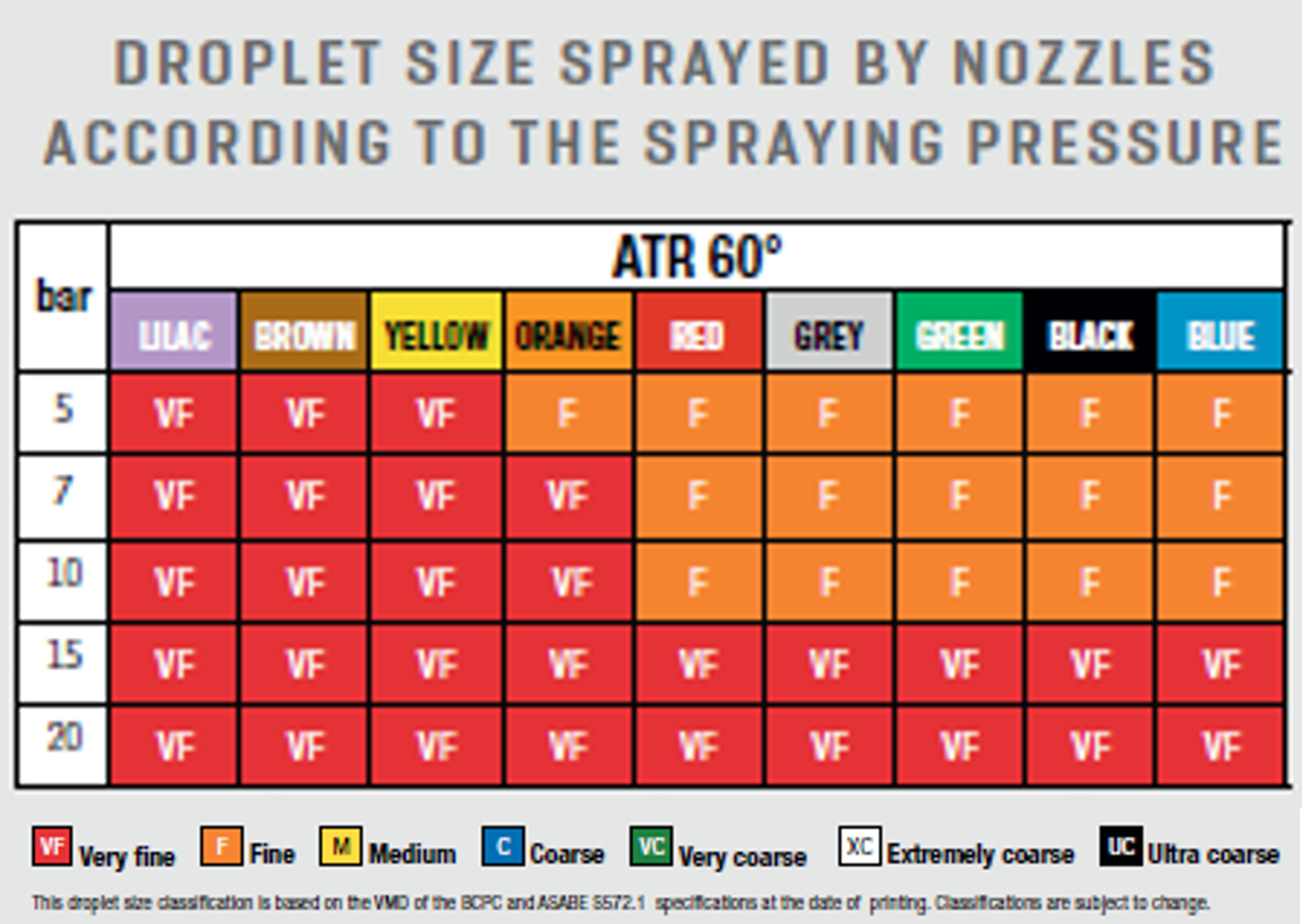

> Hollow cone nozzle producing fine droplets.

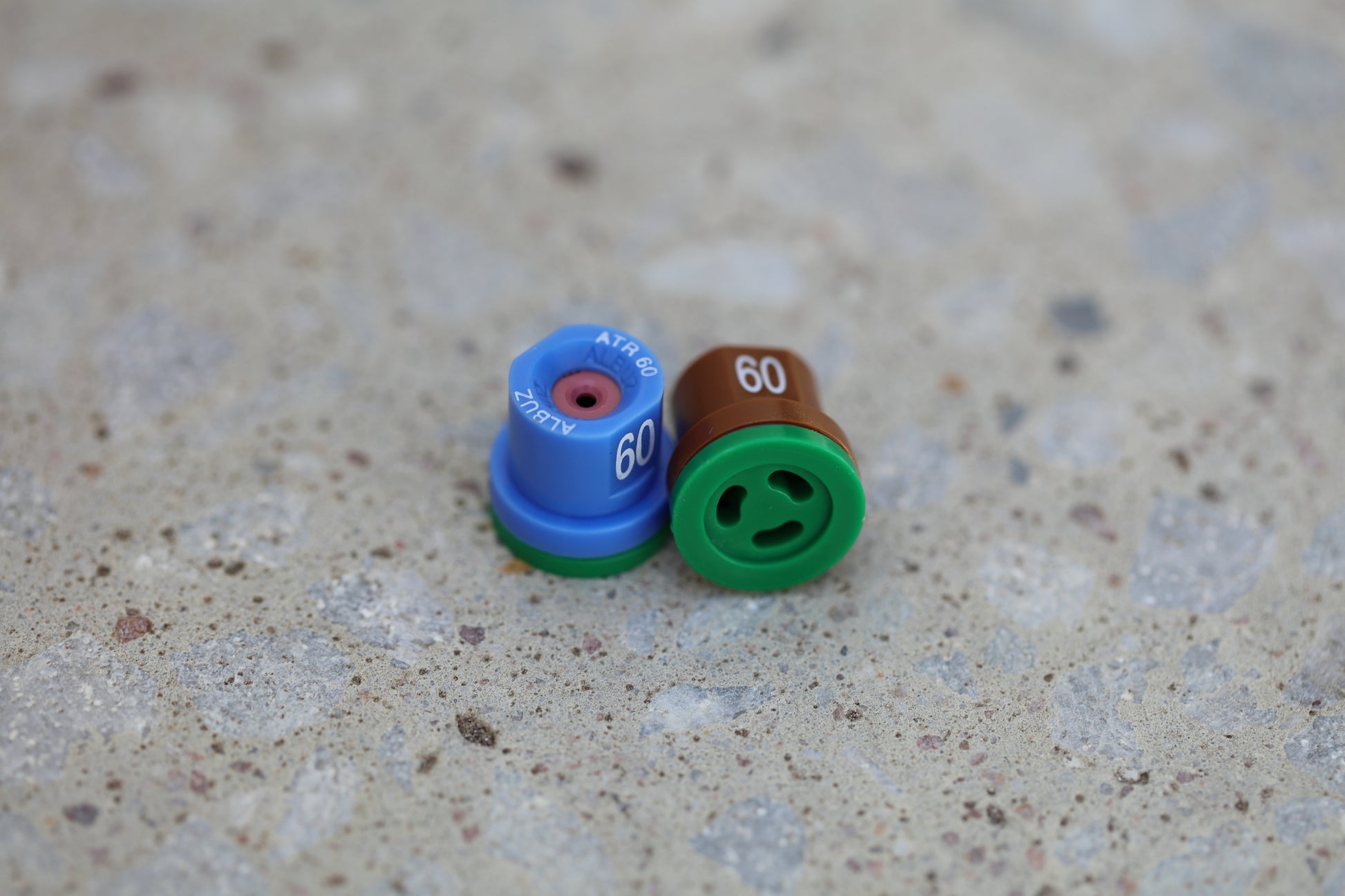

> The green cap is used to specify that the nozzles has an angle of 60 degrees.

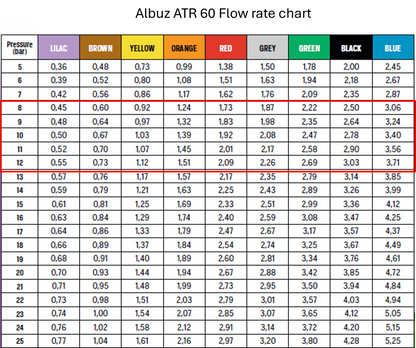

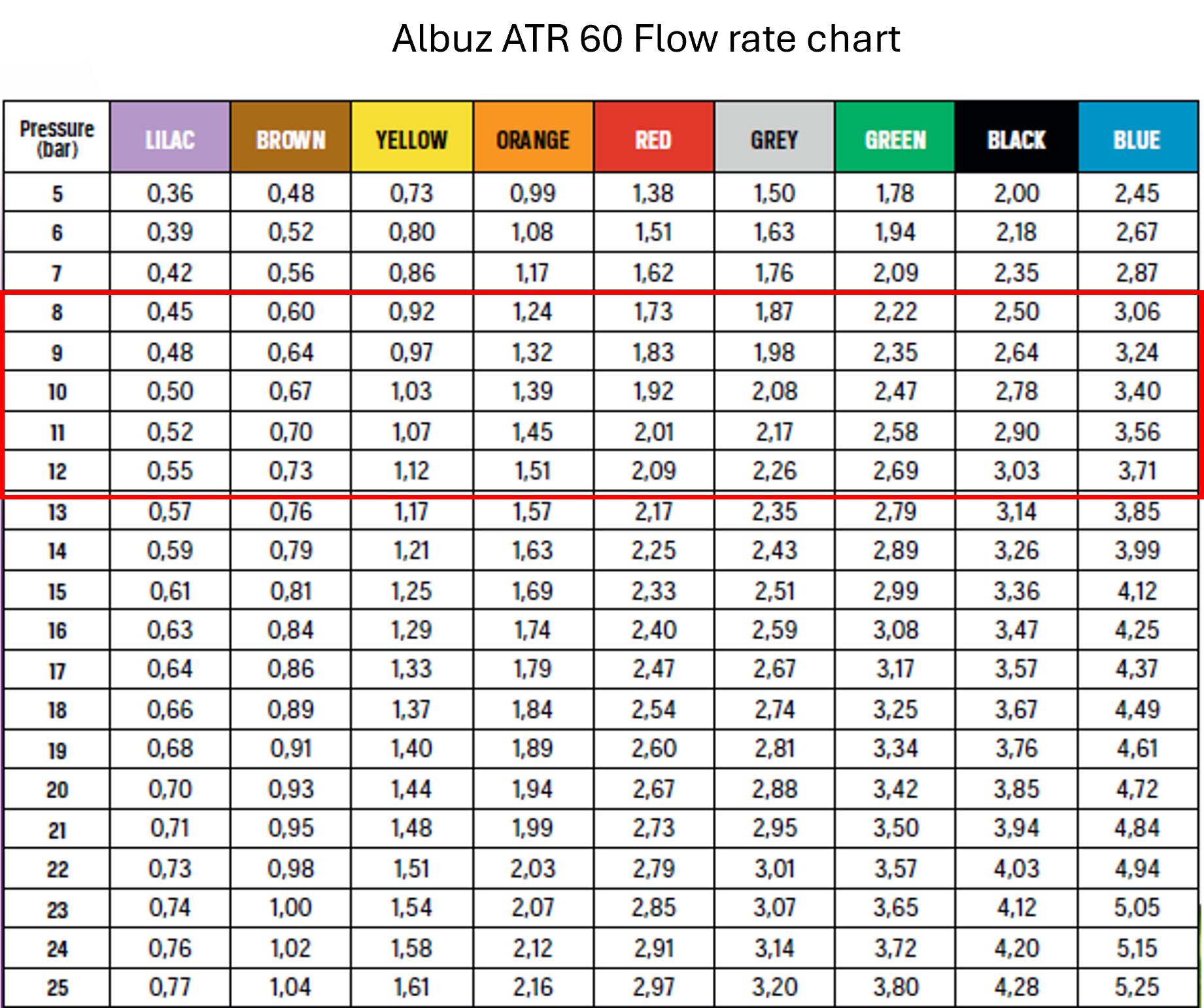

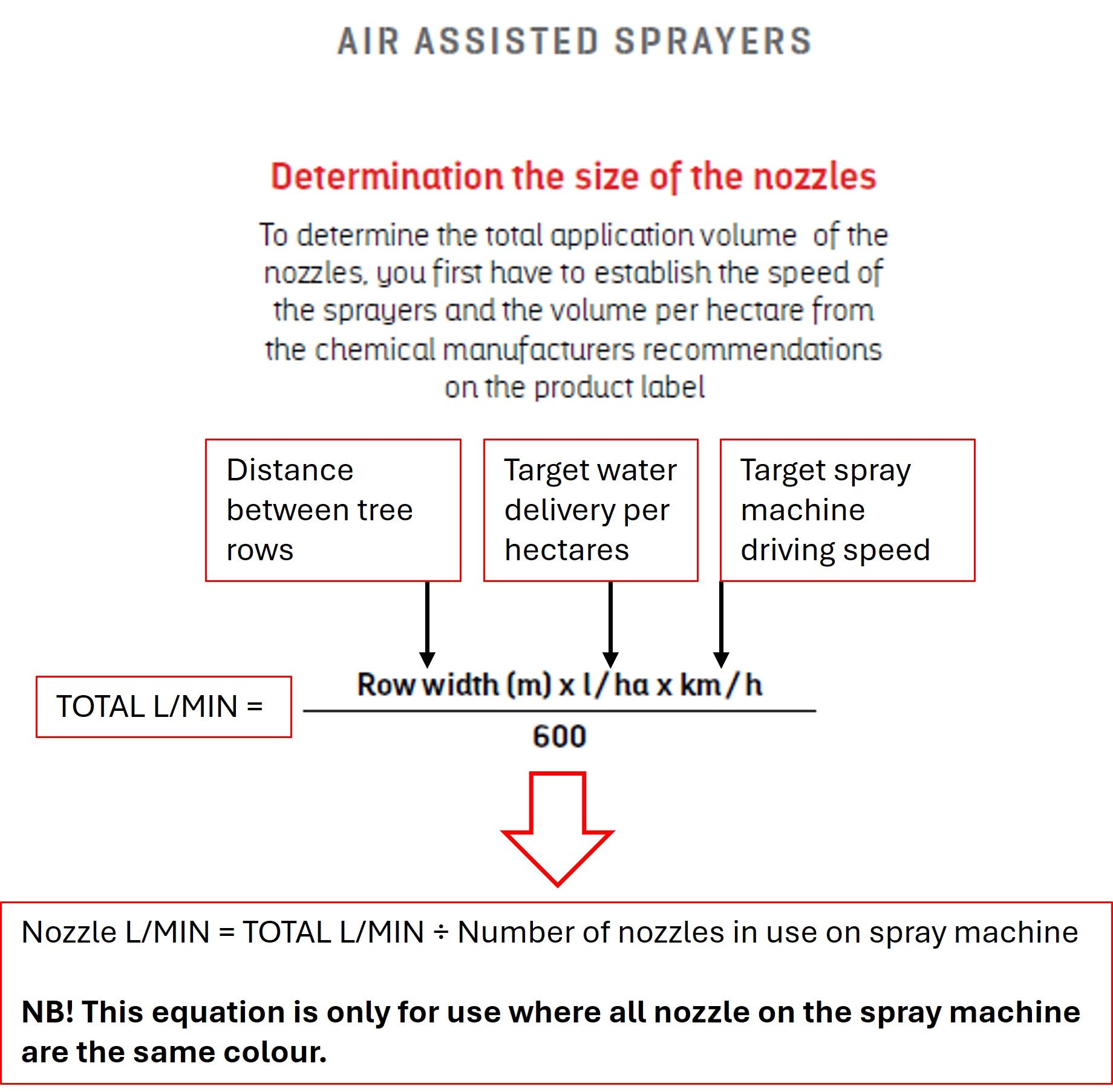

Make sure to consult the flow rate per minute chart to select the correct nozzle colour. For optimal nozzle performance, select flow rates between 8 to 12 bar pressure range.
